9-4. AXLE NO. 1 PIVOT, SPINDLE, AND AXLE SHAFT REPAIR
This task covers:
a.
Removal
d.
Assembly
b.
Disassembly
e.
Installation
c.
Cleaning/Inspection
f.
Follow-On Maintenance
INITIAL SETUP
Equipment Conditions
Tools and Special Tools (Cont)
Differential drained (axle no. 1 only)
Wrench Set, Socket, 3/4 In. (Item 231,
(LO 9-2320-360-12).
Appendix E)
Axle no. 1 brake bracket and camshaft
Wrench, Torque, 0-175 Lb-Ft (item 236,
removed (para 11-3).
Appendix E)
Tie rod end removed (TM 9-2320-360-20).
Wrench, Torque, 0-600 Lb-Ft (Item 233,
Front brake chamber removed
Appendix E)
(TM 9-2320-360-20).
Adapter, Removal Tool (Figure C-19, Appendix C)
Drag link removed (left side only) (para 13-2).
Materials/Parts
Tools and Special Tools
Adhesive-Sealant, Silicone (Item 2, Appendix B)
Tool Kit, Genl Mech (item 202, Appendix E)
Adhesive-Sealant (Item 4, Appendix B)
Compressor Unit, Air (Item 24, Appendix E)
Compound, Sealing, Pipe Thread
Cover, King Pin Preload (Item 26, Appendix E)
(Item 28, Appendix B)
Extractor, King Pin (Item 39, Appendix E)
Cloth, Crocus (Item 16, Appendix B)
Gage, Depth, Micrometer (Item 48, Appendix E)
Grease, General Purpose (Item 34, Appendix B)
Goggles, Industrial (Item 57, Appendix E)
Oil, Lubricating (Item 44, Appendix B)
Hammer, Slide (Item 64, Appendix E)
Solvent, Dry Cleaning (Item 54, Appendix B)
Multiplier, Torque (Item 99, Appendix E)
Tags, Identification (Item 56, Appendix B)
Pliers, Retaining Ring (Item 110, Appendix E)
Tags, Identification (Item 56, Appendix B)
Press, Hydraulic (Item 116, Appendix E)
Cross (2) (Item 9.1, Appendix F)
Puller Kit, Mechanical, Slide Hammer
Sealing Kit (Item 295, Appendix F)
(Item 125, Appendix E)
Seals, Oil (Item 306, Appendix F)
Socket, Sockethead Screw, 3/4 In.
Personnel Required
(Item 168, Appendix E)
Two
a.
Removal

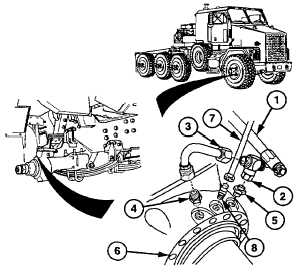

(1)
Remove hose (1) from tee (2).
(2)
Remove tube assembly (3) from tee (2)
and fitting (4).
(3)
Remove tee (2) from fitting (5).
(4)
Remove fitting (5) from spindle (6).
(5)
Remove fitting (4) from spindle (6).
(6)
Remove hose (7) from elbow (8),
(7)
Remove elbow (8) from spindle (6).
Change 1 9-13
|
