TM 9-2320-360-34-1
9-3. AXLE NO. 1 OIL SEAL AND YOKE REPLACEMENT (CONT)
c.
Installation
(1)

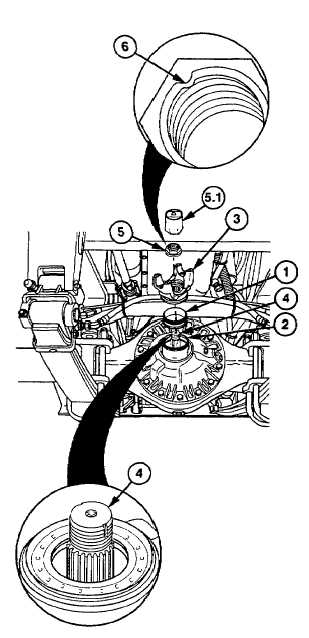

Coat new oil seal (1) with lubricating oil.
NOTE
·
Oil seal must be installed so that
spring side is against housing.
·
Oil seal is properly installed when
top of seal is 1/16 in. (1.59 mm)
below surface of housing.
(2)
Install new oil seal (1) in housing (2).
(3)
Install yoke (3) on shaft (4).
WARNING
On direct contact, uncured silicone
sealant irritates eyes. In case of
contact, flush eyes with water and
seek medical attention. In case of
skin contact, wipe off and flush with
water.
(3.1)
Coat face of yoke (3), and threads of shaft
(4), with silicone adhesive sealant.
(4)
Install new locknut (5) on shaft (4) using
socket (5.1). Torque to 486-572 lb-ft (659-
775 Nm) using yoke holder with aid of
assistant
(4.1)
Inspect
to
see
that
adhesive
has
squeezed out around locknut (5). If
adhesive is not visible around entire
circumference, repeat steps (3.1) and (4).
(5)
Bend lip (6) of locknut (5) into slot in shaft
(4).
d.
Follow-On Maintenance
(1)
Install transfer case to axle no. 1 propeller shaft (TM 9-2320-360-20).
(2)
Check differential oil level. Add oil if necessary. (LO 9-2320-360-12).
9-12 Change 1
|
