TM 9-2320-360-34-1
9-3. AXLE NO. 1 OIL SEAL AND YOKE REPLACEMENT
This task covers:
a.
Removal
c.
Installation
b.
Cleaning/Inspection
d.
Follow-On Maintenance
INITIAL SETUP
Equipment Conditions
Materials/Parts
Transfer case to no. 1 axle propeller shaft
Adhesive-Sealant, Silicone
removed (TM 9-2320-360-20).
(Item 2, Appendix B)
Oil, Lubricating (Item 41, Appendix B)
Tools and Special Tools
Locknut (Item 150, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Seal, Oil (Item 305, Appendix F)
Adapter, Socket Wrench, 3/4 In. Female -
1 in. Male (Item 6, Appendix E)
Personnel Required
Holder, Yoke (Figure C-15, Appendix C)
Two
Multiplier, Torque (Item 99, Appendix E)
Puller Kit, Mechanical, Gear and Brg
(Item 124, Appendix E)
Socket, 55 mm (Item 163.1, Appendix E)
Wrench Set, Socket, 1 In. Drive (Item 230,
Appendix E)
Wrench, Torque, 0-600 Lb-Ft (Item 233,
Appendix E)
a.
Removal

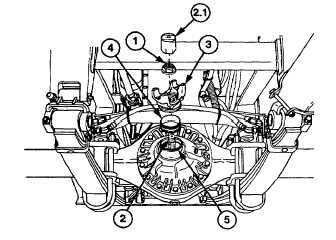

(1)
Unstake and remove locknut (1) from
shaft (2) using yoke holder and socket
(2.1). Discard locknut.
(2)
Remove yoke (3) from shaft (2).
(3)
Remove oil seal (4) from housing (5).
Discard seal.
b.
Cleaning/Inspection
Clean foreign material from housing where
outside lip of seal seats.
Change 1 9-11
|
