TM 9-2320-360-34-1
9-2. AXLE NO. 1 REPLACEMENT (CONT)
(29)

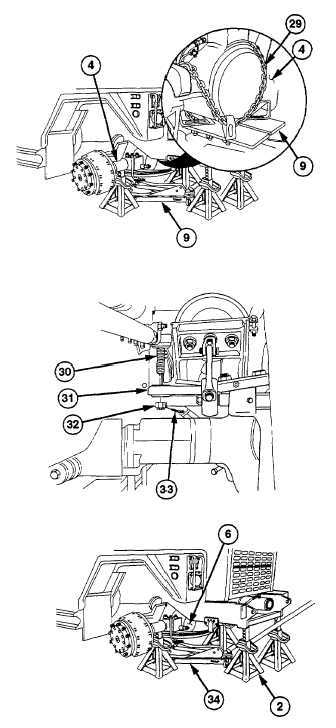

Remove chain (29) from axle (4) and
transmission lift (9).
(30)
Remove transmission lift (9) from under
axle (4).
(31)
Insert drag link (30) in steering arm (31).
(32)
Install nut (32) on drag link (30). Torque
to 165 lb-ft (224 Nm). Continue to tighten
until hole in drag link is aligned with slot in
nut.
(33)
Install new cotter pin (33) through nut (32).
(34)
Position
floor
jack
(34)
under
axle
differential (6).
(35)
Raise HET Tractor and remove two
jackstands (2).
(36)
Lower front of HET Tractor to normal
operating height and remove floor jack.
c.
Follow-On Maintenance
(1)
install transfer case to axle no. 1 propeller
shaft (TM 9-2320-360-20).
(2)
Install
front
shock
absorbers
(TM
9-2320-360-20).
(3)
Install front bumper (TM 9-2320-360-20).
(4)
Fill front differential (LO 9-2320-360-12).
(5)
Fill front wheel ends (LO 9-2320-360-12).
(6)
Install axle no. 1 brake drums (TM
9-2320-360-20).
(7)
Adjust steering system (para 13-8).
9-10
|
