TM 9-2320-360-34-1
(21)

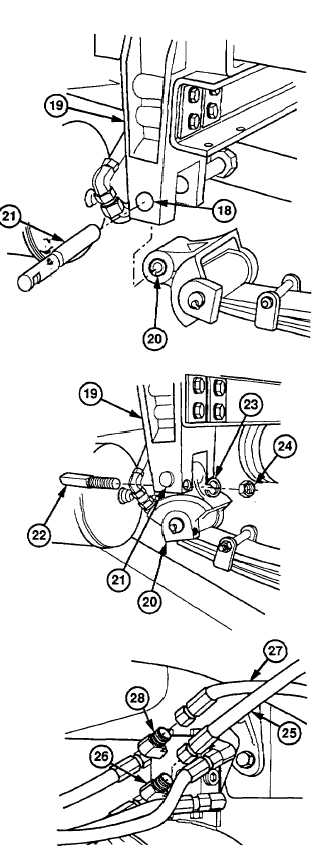

Coat spring pin hole (18) in spring link (19)
and spring eyes (20) with lubricating oil.
WARNING
Keep fingers out of pin hole in spring
brackets and spring eyes when
installing spring pins. Failure to
comply may result in serious injury
to personnel.
CAUTION
Do not strike spring pin on grease
fitting end. Grease fitting may be
damaged.
NOTE
Slotted end of pin must be at outer
side
of
spring
pin
hole
when
installed. Slot in spring pin must be
at bottom of bracket and aligned with
spring lock pin hole.
(22)
Align spring link (19) with spring eye (20)
and insert spring pin (21).
CAUTION
Do not allow spring lock pin to enter
slot on an angle. It will wedge and
gall when locked on an angle. it will
become loose and allow pin to turn
and wear hanger bracket, resulting in
failure of pin, spring, or bracket.
NOTE
Flat surface on spring lock pin faces
up.
(23)
Insert spring lock pin (22) in spring link
(19) until key taper aligns with spring pin
locking slot.
(24)
Tap spring lock pin (22) to lock taper to
spring pin (21).
(25)
Install new lockwasher (23) and nut (24)
on spring lock pin (22). Torque to 55 lb-ft
(75 Nm).
(26)
Repeat steps (21) thru (25) for remaining
spring.
(27)
Install hose no. 2102 (25) on fitting (26).
(28)
Install hose no. 2543 (27) on fitting (28).
9-9
|
