9-2. AXLE NO. 1 REPLACEMENT (CONT)
WARNING
Keep fingers out of pin hole in spring brackets and spring eyes when installing
spring pins. Failure to comply may result in serious injury to personnel.
CAUTION
Do not strike spring pin on grease
fitting end. Grease fitting may be
damaged.
NOTE
Slotted end of pin must be at outer
side
of
spring
pin
hole
when
installed. Slot in spring pin must be
at bottom of bracket and aligned with
spring lock pin hole.
(16)

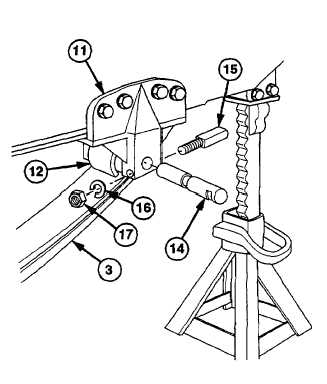

Insert spring pin (14) in front bracket (11)
and spring eye (12).
CAUTION
Do not allow spring lock pin to enter
slot on an angle. It will wedge and
gall when locked on an angle. It will
become loose and allow pin to turn
and wear hanger bracket, resulting in
failure of pin, spring, or bracket.
NOTE
·
Flat surface on spring lock pin
faces up.
·
Spring lock pin hole on bracket is
only machined on one side.
Spring lock pin must be installed
on
non-machined
side.
Lockwasher and nut must be on
machined side.
(17)
Insert spring lock pin (15) in front bracket
(11) until key taper aligns with spring pin
locking slot.
(18)
Tap spring lock pin (15) to lock taper to
spring pin (14).
(19)
Install new lockwasher (16) and nut (17)
on spring lock pin (15). Torque to 55 lb-ft
(75 Nm).
(20)
Repeat steps (16) thru (19) for remaining
spring.
