TM 9-2320-360-34-1
WARNING
Support axle with transmission lift.
Secure axle to transmission lift with
strap or chain. Failure to comply
may result in serious injury to
personnel.
(8)

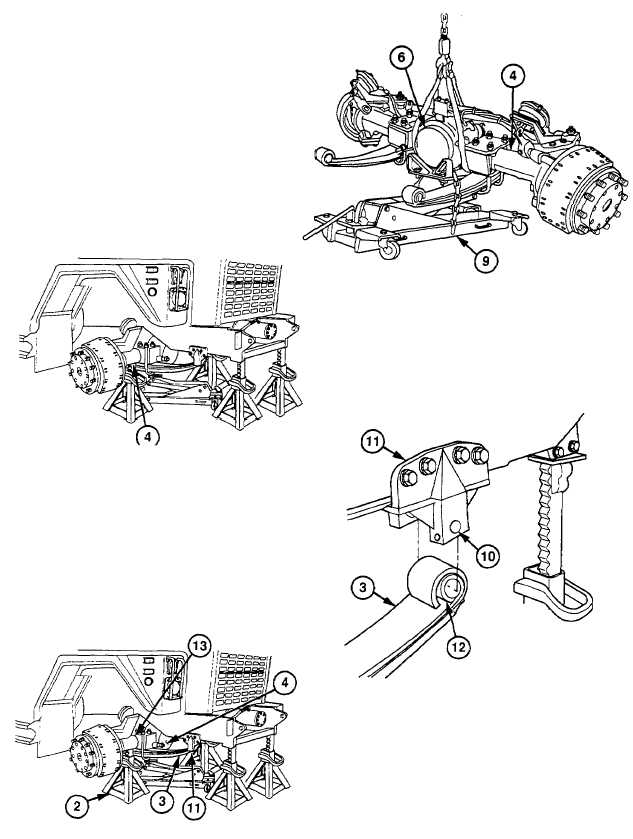

Raise axle (4) and position transmission
lift (9) under axle differential (6).
(9)
Position axle (4) on transmission lift (9).
(10)
Secure axle (4) to transmission lift (9).
(11)
Remove lifting device from axle (4).
(12)
Position axle (4) under HET Tractor with
aid of assistant.
(13)
Coat spring pin hole (10) in front brackets
(11) and spring eyes (12) with lubricating
oil.
(14)
Raise axle (4) with aid of assistant, and
position front of springs (3) in front
brackets (11).
(15)
Support
axle
housings
(13)
with
jackstands (2).
9-7
|
