9-2. AXLE NO. 1 REPLACEMENT (CONT)
b.
Installation
WARNING
Spring assemblies weigh 192 lb (87
kg). Keep hands and feet out from
under spring assemblies. Failure to
comply may result in injury to
personnel.
NOTE
·
U-bolts have a slight bow. U-
bolts must be installed so they
bow toward center of spring.
·
Spring center bolt must align with
hole in spring shoe.

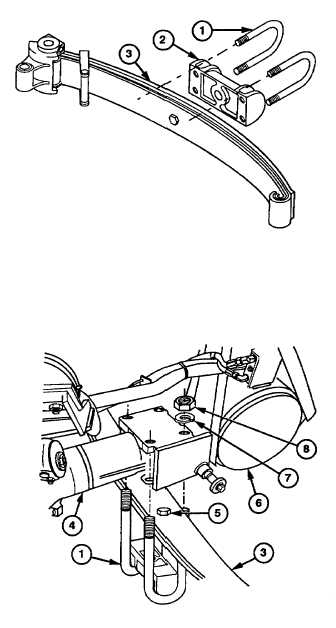

(1)
Position four U-bolts (1) on two spring
shoes (2) and install on two springs (3)
with aid of assistant.
WARNING
Axle weighs 1625 lb (738 kg). Keep
hands and feet out from under axle.
Failure to comply may result in injury
or death to personnel.
(2)
Attach lifting device to axle (4).
(3)
Lift axle (4) enough to allow placement of
springs (3) under axle (4).
NOTE
Spring center bolt must align with
hole in bottom of axle.
(4)
Lower axle (4) and position center bolt (5)
of spring (3) in aligning hole on axle
differential (6) with aid of assistant.
(5)
Install four new lockwashers (7) and nuts
(8) on two U-bolts (1) of spring (3).
(6)
Repeat steps (4) and (5) for remaining
spring (3).
(7)
Tighten eight nuts (8) to 450-550 lb-ft
(610-746 Nm).
