TM 9-2320-360-34-1
(16)

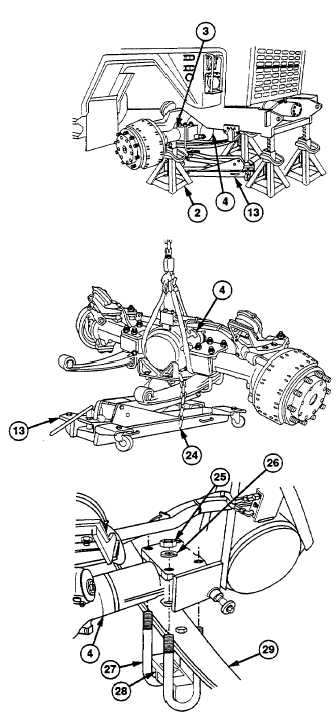

Raise axle (4) and remove jackstands (2)
from housing ends (3).
WARNING
Axle/suspension weighs 1975 lb (897
kg). Keep hands and feet out from
under axle. Failure to comply may
result in injury or death to personnel.
(17)
Lower lift (13) and remove axle (4) from
HET Tractor with aid of assistant.
(18)
Remove chain (24) from axle (4) and
transmission lift (13).
CAUTION
Keep lifting device clear of springs
and U-bolts. Failure to comply may
result in equipment damage.
(19)
Attach lifting device to axle (4).
(20)
Lift axle (4) and set on hard, level surface.
(21)
Remove eight nuts (25) and lockwashers
(26) from four U-bolts (27). Discard
lockwashers.
WARNING
Spring assemblies weigh 192 lb (87
kg). Keep hands and feet out from
under spring assemblies. Failure to
comply may result in injury to
personnel
(22)
Lift axle (4) with lifting device and remove
four U-bolts (27), two spring shoes (28),
and springs (29) from axle (4).
(23)
Lower axle (4) and remove lifting device.
9-5
|
