TM 9-2320-360-34-1
9-2. AXLE NO. 1 REPLACEMENT (CONT)
NOTE
Right and left side spring pins are
replaced the same way. Right side is
shown.
(12)

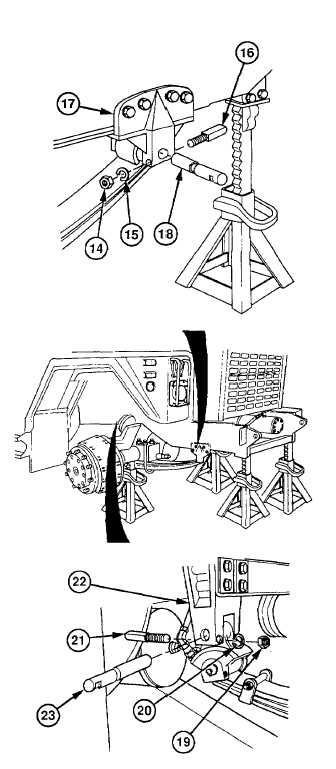

Remove two nuts (14), lockwashers (15),
and spring lock pins (16) from front
brackets (17). Discard lockwashers.
WARNING
Keep fingers out of pin hole in spring
brackets and spring eyes when
removing spring pins. Failure to
comply may result in injury to
personnel.
CAUTION
Do not strike spring pin on grease
fitting end. Grease fitting may be
damaged.
(13)
Remove two spring pins (18) from front
brackets (17).
(14)
Remove two nuts (19), lockwashers (20),
and spring lock pins (21) from rear
brackets (22). Discard lockwashers.
(15)
Remove two spring pins (23) from rear
brackets (22).
9-4
|
