TM 9-2320-360-34-1
WARNING
Drag link must be supported after
removing hardware to prevent It from
falling. Failure to comply may result
in Injury to personnel.
(4)

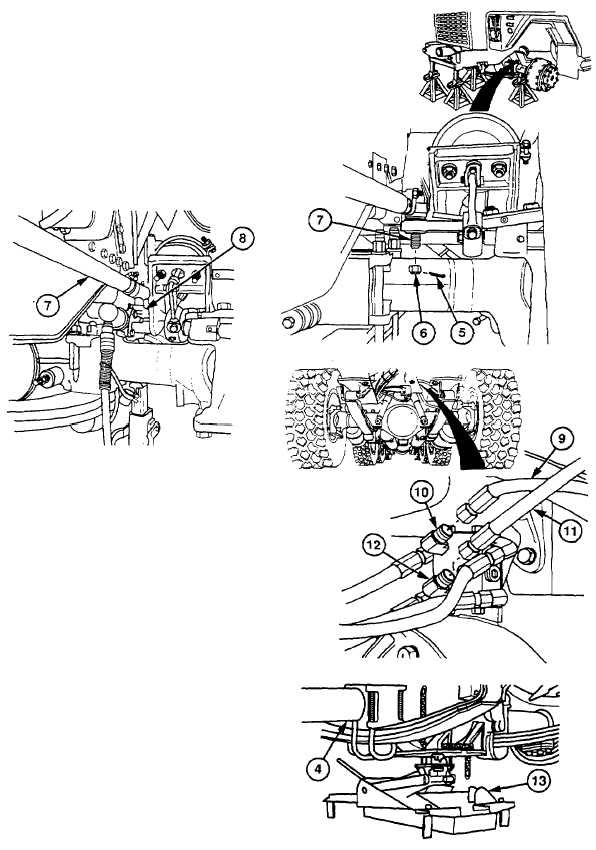

Remove cotter pin (5) from nut (6).
Discard cotter pin.
(5)
Remove nut (6) from drag link (7).
(6)
Remove drag link (7) from axle steering
arm (8) using hydraulic hand jack.
(7)
Remove hose no. 2543 (9) from fitting
(10).
(8)
Remove hose no. 2102 (11) from fitting
(12).
WARNING
·
Axle/suspension weighs 1975 lb
(897 kg). Keep hands and feet
out from under axle. Failure to
comply may result in injury or
death to personnel.
·
Support axle with transmission
lift. Secure axle to transmission
lift with strap or chain. Failure to
comply may result in serious
injury to personnel.
(9)
Position transmission lift (13) under axle
(4).
(10)
Secure axle (4) to transmission lift (13).
(11)
Raise transmission lift (13) to support axle
(4).
9-3
|
