TM 9-2320-360-34-1
9-2. AXLE NO. 1 REPLACEMENT
This task covers
a.
Removal
c.
Follow-On Maintenance
b.
Installation
INITIAL SETUP
Equipment Conditions
Tools and Special Tools (Cont)
Steering wheel turned full left.
Wrench Set, Socket, 3/4 In. Drive (Item 231,
Front bumper removed (TM 9-2320-360-20).
Appendix E)
Front shock absorbers removed
Wrench, Impact, Electric, 1 In. (Item 223,
(TM 9-2320-360-20).
Appendix E)
Front differential and wheel ends drained
Wrench, Torque, 0-175 Lb-Ft (Item 236,
(LO 9-2320-360-12).
Appendix E)
Transfer case to axle no. 1 propeller shaft
Wrench, Torque, 0-600 Lb-Ft (Item 233,
removed (TM 9-2320-360-20).
Appendix E)
Brake drums removed (TM 9-2320-360-20).
Materials/Parts
Tools and Special Tools
Oil, Lubricating (Item 48, Appendix B)
Tool Kit, Genl Mech (Item 202, Appendix E)
Lockwashers (8) (Item 133, Appendix F)
Adapter, Socket Wrench, 3/4 In. Female - 1 in.
Lockwashers (4) (Item 122, Appendix F)
Male (Item 6, Appendix E)
Pin, Cotter (Item 219, Appendix F)
Jack, Floor, 10-Ton (Item 90, Appendix E)
Jack Kit, Hydraulic Hand (Item 92, Appendix E)
Special Environmental Conditions
Jackstands, (4) (Item 93, Appendix E)
HET Tractor parked on hard, level surface.
Lift, Transmission and Differential (item 95,
Appendix E)
Personnel Required
Tape, Measuring, 12 Ft (Item 189, Appendix E)
Two
Sling, Endless Strap (Item 161, Appendix E)
a.
Removal
(1)

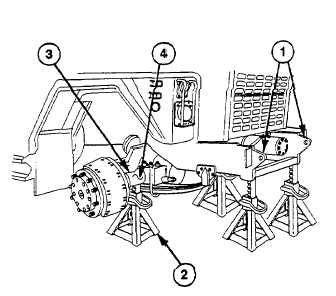

Raise HET Tractor until bottom of tow
eyes (1) are a minimum of 28 in. (71 cm)
above the ground.
(2)
Place jackstands (2) under front tow eyes
(1) and lower HET Tractor on jackstands
(2).
(3)
Place jackstands (2) under both axle
housing ends (3). Support axle (4) on
jackstands (2).
9-2
|
