8-7. LUBRICATION PUMP REPLACEMENT
This task covers:
a.
Removal
c.
Follow-On Maintenance
b.
Installation
INITIAL SETUP
Equipment Conditions
Materials/Parts
Engine shut off (TM 9-2320-360-10).
Adhesive-Sealant, Silicone (Item 2, Appendix B)
Parking brake on (TM 9-2320-360-10).
Compound, Sealing, Pipe Thread (Item 28,
Wheels chocked.
Appendix B)
Lockwashers (4) (Item 119, Appendix F)
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
Wrench, Torque, 0-300 Lb-In. (Item 235,
Appendix E)
Vise, Machinist's (item 207, Appendix E)
a.
Removal

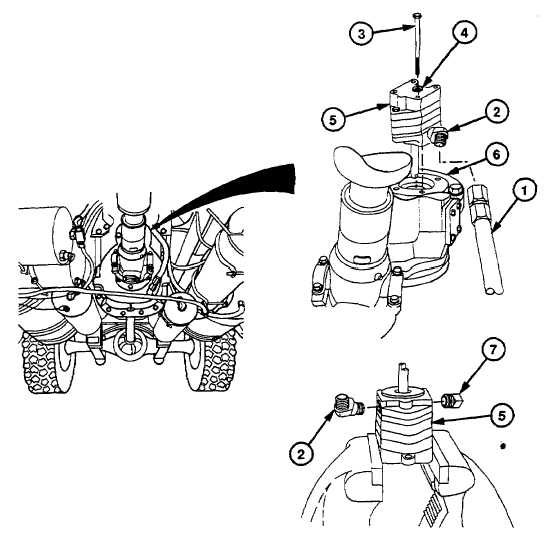

(1)
Disconnect lubrication hose no. 2831 (1)
from fitting (2).
(2)
Remove four screws (3) and lockwashers
(4) from lubrication pump (5). Discard
lockwashers.
(3)
Remove lubrication pump (5) from bearing
cover (6).
(4)
Place lubrication pump (5) in vise.
(5)
Remove fitting (2) from lubrication pump
(5).
(6)
Remove plug (7) from lubrication pump
(5).
