b.
Installation
WARNING
Pipe thread sealing compound can burn easily, can give off harmful vapors, and is
harmful to skin and clothing. To avoid Injury or death, keep away from open tire
and use in well-ventilated area. If pipe thread sealing compound gets on skin or
clothing, wash immediately with soap and water.
(1)

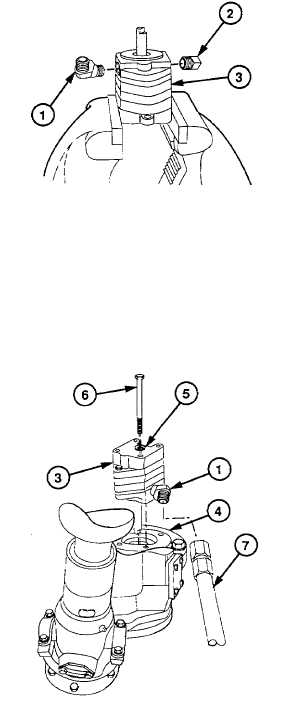

Coat threads of fitting (1) and plug (2) with
pipe thread sealing compound.
NOTE
Lubrication pump is marked with a D
and S side. Fitting is installed on S
of lubrication pump. Plug is installed
on D of pump.
(2)
Install fitting (1) and plug (2) on lubrication
pump (3).
WARNING
On direct contact, uncured silicone
sealant irritates eyes. In case of
contact, flush eyes with water and
seek medical attention. In case of
skin contact, wipe off and flush with
water.
(3)
Coat pump mounting surface of bearing
cover (4) with silicone adhesive-sealant.
NOTE
Ensure spline on shaft engages slot
on drive plate when doing step (4).
(4)
Install lubrication pump (3) on bearing
cover (4) with four new lockwashers (5)
and screws (6). Torque to 180 lb-in. (20
Nm).
(5)
Connect lubrication hose no. 2831 (7) on
fitting (1).
c.
Follow-On Maintenance
Remove wheel chocks.
