TM 9-2320-360-34-1
b.

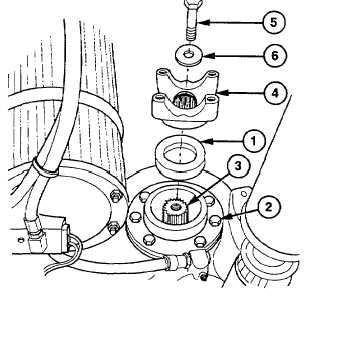

Installation
(1)
Coat lip of new oil seal (1) with grease.
(2)
Install new oil seal (1) in housing (2).
WARNING
On direct contact, uncured silicone
sealant irritates eyes. In case of
contact, flush eyes with water and
seek medical attention. In case of
skin contact, wipe off and flush with
water.
(3)
Coat end surface of shaft (3) with silicone
adhesive-sealant.
(4)
Install and seat yoke (4) against shaft (3).
WARNING
Adhesive-sealant can burn easily,
can give off harmful vapors, and is
harmful to skin and clothing. To
avoid injury or death, keep away from
open fire and use in well-ventilated
area. If adhesive-sealant gets on skin
or clothing, wash immediately with
soap and water.
(5)
Coat threads of screw (5) with adhesive-
sealant.
(6)
install retaining washer (6) and screw (5)
on yoke (4). Torque to values given in
table 8-1.
Table 8-1. Torque Values
YOKE
TORQUE (LB-FT)
TORQUE (N· m)
Rear Output
308
418
Front Output
375
508
Front Input
375
508
c.
Follow-On Maintenance
(1)
Install propeller shafts (TM 9-2320-360-20).
(2)
Fill transfer case with oil (LO 9-2320-360-12).
All data on pages 8-18 and 8-19 deleted.
Change 1 8-17 (8-18 and 8-19 blank)
|
