TM 9-2320-360-34-1
8-5. OIL SEAL AND YOKE REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Materials/Parts
Transfer case oil drained (LO 9-2320-360-12).
Adhesive-Sealant, Silicone (Item 2, Appendix B)
Propeller shaft removed
Adhesive-Sealant (Item 5, Appendix B)
(TM 9-2320-360-20).
Grease, Automotive and Artillery (Item 32,
Transfer case in LOW range
Appendix B)
(TM 9-2320-360-10).
Seal, Oil (Item 304, Appendix F)
Driveline selector in LOCK position
Seal, Oil (Item 309, Appendix F)
(TM 9-2320-360-10).
Seal, Oil (Item 310, Appendix F)
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
Holder, Yoke (Figure C-15, Appendix C)
Multiplier, Torque (Item 99, Appendix E)
Wrench Set, Socket, 3/4 In. Drive (Item 231,
Appendix E)
Wrench, Torque, 0-600 Lb-Ft (Item 233,
Appendix E)
a.
Removal
NOTE
All three oil seals are replaced the
same way.

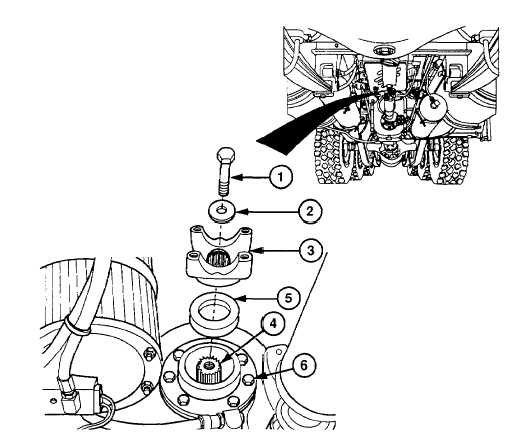

(1)
Remove screw (1) and retaining washer
(2) from yoke (3).
(2)
Remove yoke (3) from shaft (4).
(3)
Remove oil seal (5) from housing (6).
Discard seal.
8-16
|
