8-4. TRANSFER CASE SUPPORT ASSEMBLIES REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Materials/Parts
Transfer case mounting bracket removed
Adhesive-Sealant (item 5, Appendix B)
(para 14-12).
Ties, Cable, Plastic (Item 60, Appendix B)
Fasteners, Ratchet (7) (Item 11, Appendix F)
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
WARNING
Do not attempt to replace both left
and right brackets at the same time.
Failure to comply may result In
transfer case not being properly
supported. Transfer case could fall
and cause Injury to personnel.
NOTE
Left and right brackets are replaced
the same way.
a.
Removal
NOTE
·
Do steps (1) thru (5) for right
bracket only.
·
Location of plastic cable ties
should
be
marked
before
removal.

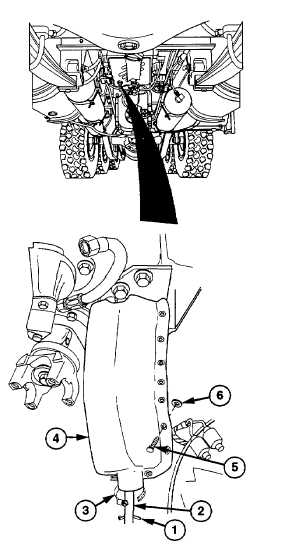

(1)
Remove plastic cable ties (1) from cable
(2) as required.
(2)
Remove hose clamp (3) from boot (4)
under cab.
(3)
Cut seven ratchet fasteners (5) above
washers (6).
(4)
Remove seven washers (6) and fasteners
(5) from boot (4). Discard fasteners.
(5)
Remove boot (4) from cable (2).
