TM 9-2320-360-34-1
(22)

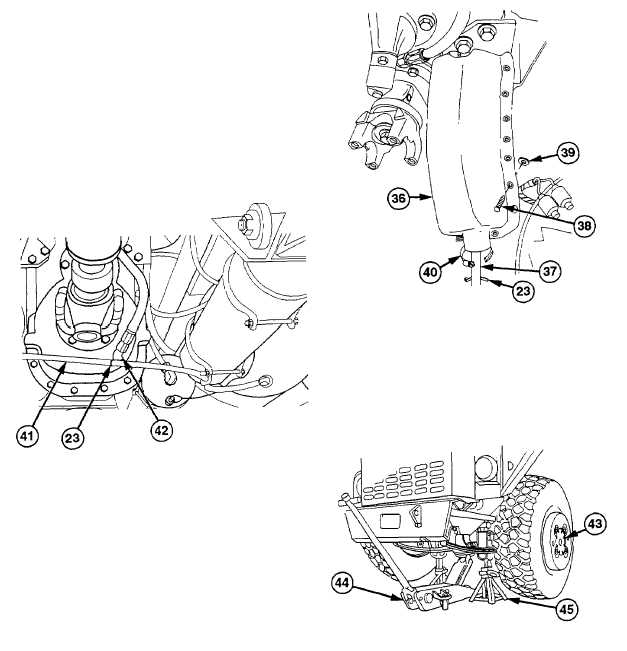

Install boot (36) on cable (37).
(23)
Install seven new fasteners (38) and
washers (39) on boot (36).
(24)
Install clamp (40) on boot (36).
NOTE
Plastic
cable
ties
should
be
positioned
in
locations
marked
during removal.
(25)
Secure cable (37) with plastic cable tie
(23).
(26)
Secure fuel crossover tube (41) to elbow
(42) with plastic cable tie (23).
(27)
Raise axle no. 1 (43) with floor jack (44).
Remove two jackstands (45) and lower
floor jack.
c.
Follow-On Maintenance
(1)
Install
no.
5
air
reservoir
(TM 9-2320-360-20).
(2)
Install
no.
2
axle
input
propshaft
(TM 9-2320-360-20).
(3)
Install
front
axle
propshaft
(TM 9-2320-360-20).
(4)
Install
transfer
case
input
propshaft
(TM 9-2320-360-20).
(5)
Fill transfer case (LO 9-2320-360-12).
8-13
|
