TM 9-2320-360-34-1
8-3. TRANSFER CASE REPLACEMENT (CONT)
(13)

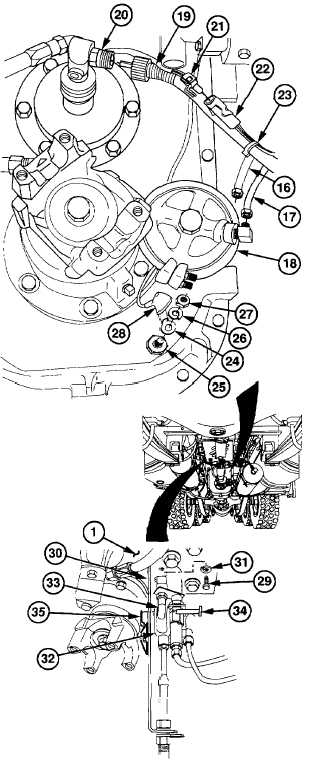

Install hose no. 2874 (16) and hose no.
2769 (17) on shift chamber (18).
NOTE
Tab on speedometer cable must be
aligned with slot in speedometer
adapter.
(14)
Install
speedometer
cable
(19)
on
speedometer drive housing (20).
(15)
Connect
electrical
connector
(21)
to
electrical connector (22).
NOTE
Plastic
cable
ties
should
be
positioned
in
locations
marked
during removal.
(16)
Secure
electrical
connector
(22)
to
speedometer cable (19) with plastic cable
tie (23).
(17)
Install wire (24) on sending unit (25) with
new lockwasher (26) and nut (27).
(17.1)
Coat terminal of sending unit (25) with
anticorrosion grease.
(18)
Slide boot (28) on sending unit (25).
WARNING
Adhesive-sealant can burn easily,
can give off harmful vapors, and is
harmful to skin and clothing. To
avoid injury or death, keep away from
open fire and use in well-ventilated
area. If adhesive sealant gets on skin
or clothing, wash immediately with
soap and water.
(19)
Coat threads of two screws (29) with
adhesive-sealant (Item 6, Appendix B).
(20)
Install bracket (30) on transfer case (1)
with two new lockwashers (31) and
screws (29).
(21)
Install yoke (32) on link (33) with pin (34)
and new cotter pin (35).
8-12 Change 1
|
