TM 9-2320-360-34-1
8-3. TRANSFER CASE REPLACEMENT (CONT)
b.
Installation
WARNING
Transfer case weighs 965 lb (438 kg).
Keep out from under transfer case
when supported by lifting device to
prevent serious Injury to personnel.
(1)

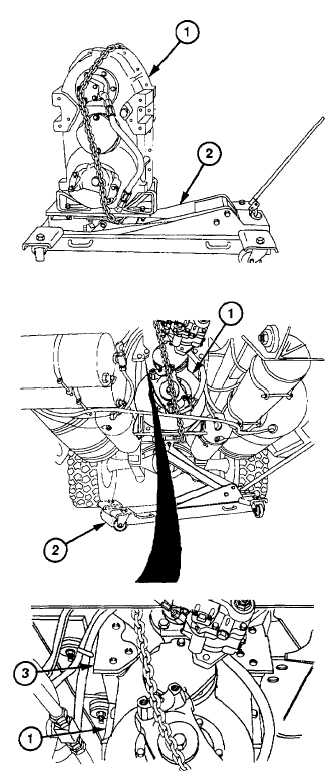

Position transfer case (1) on transmission
lift (2).
(2)
Secure transfer case (1) to transmission
lift (2).
(3)
Raise transmission lift (2) and align
transfer case (1) in left transfer case
support bracket (3) with aid of assistant.
8-10
|
