TM 9-2320-360-34-1
(20)

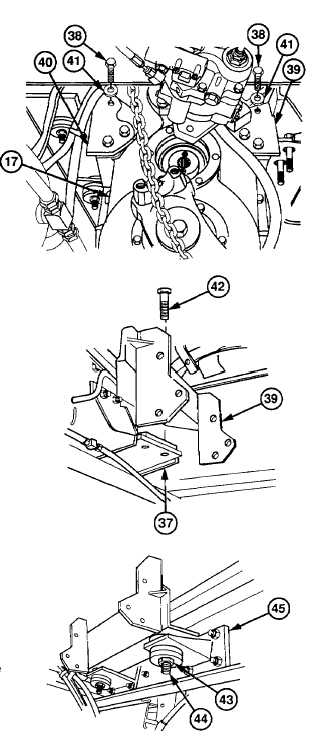

Remove six screws (38) and washers (41)
from front and back of left transfer case
support bracket (40).
(21)
Remove six screws (38) and washers (41)
from front and back of right transfer case
support bracket (39).
WARNING
Right transfer case bracket may drop
from mounting bracket as transfer
case is lowered. Keep out from
below HET Tractor to prevent serious
Injury.
(22)
Lower transfer case (17) and remove from
under vehicle.
(23)
Remove two screws (42) and right transfer
case support bracket (39) from mounting
bracket (37).
(24)
Loosen, but do not remove, two locknuts
(43) on two screws (44) on left transfer
case mounting bracket (45).
8-9
|
