8-3. TRANSFER CASE REPLACEMENT (CONT)
WARNING
Transfer case weighs 965 lb (438 kg).
Keep out from under transfer case
when supported by lifting device to
prevent serious injury to personnel.
(16)

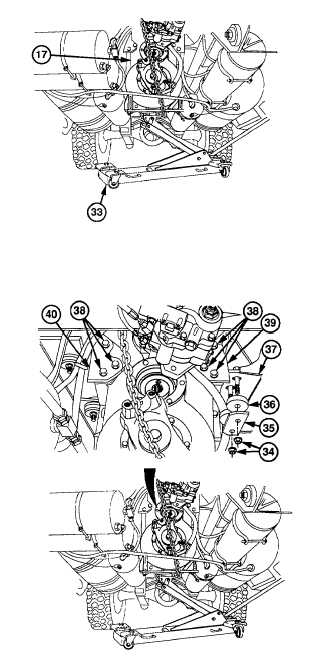

Position transmission lift (33) under center
of transfer case (17).
(17)
Secure transfer case (17) to transmission
lift (33).
(18)
Remove two locknuts (34), plate (35), and
two mounting biscuits (36) from right
transfer case mounting bracket (37).
Discard locknuts.
(19)
Loosen, but do not remove, 12 screws
(38) from front and back of right and left
transfer case support brackets (39 and
40).
