TM 9-2320-360-34-1
(9)

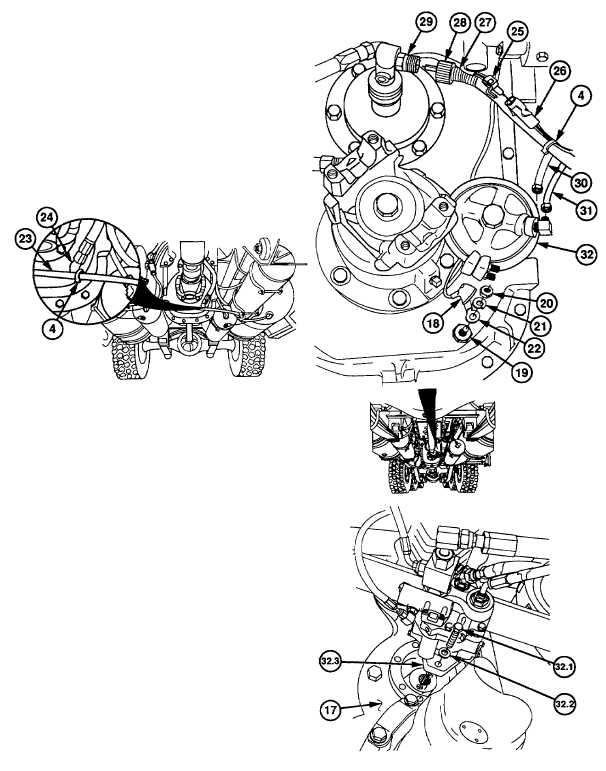

Lift and slide boot (18) from sending unit
(19).
(10)
Remove nut (20), lockwasher (21), and
wire (22) from sending unit (19). Discard
lockwasher.
NOTE
Location of plastic cable ties should
be marked before removal.
(11)
Remove plastic cable ties (4) that secure
fuel crossover hose (23) to elbow (24).
NOTE
Fuel
crossover
hose
must
be
positioned at front end of transfer
case to aid in removal of transfer
case.
(12)
Disconnect electrical connector (25) from
electrical connector (26).
NOTE
Location of plastic cable ties should
be marked before removal.
(13)
Remove plastic cable ties (4) that secure
electrical connector (26) to speedometer
cable (27).
(14)
Turn
cap
(28)
counterclockwise
and
remove speedometer cable (27) from
speedometer sending unit (29).
(15)
Remove hose no. 2874 (30) and hose no.
2769 (31) from shift chamber (32).
(15.1)
Remove
two
screws
(32.1), washers
(32.2), and auxiliary steering pump (32.3)
from transfer case (17).
(15.2)
Secure steering pump (32.3) away from
transfer case (17).
8-7
|
