TM 9-2320-360-34-1
8-3. TRANSFER CASE REPLACEMENT (CONT)
NOTE
Location of plastic cable ties should
be marked before removal.
(2)

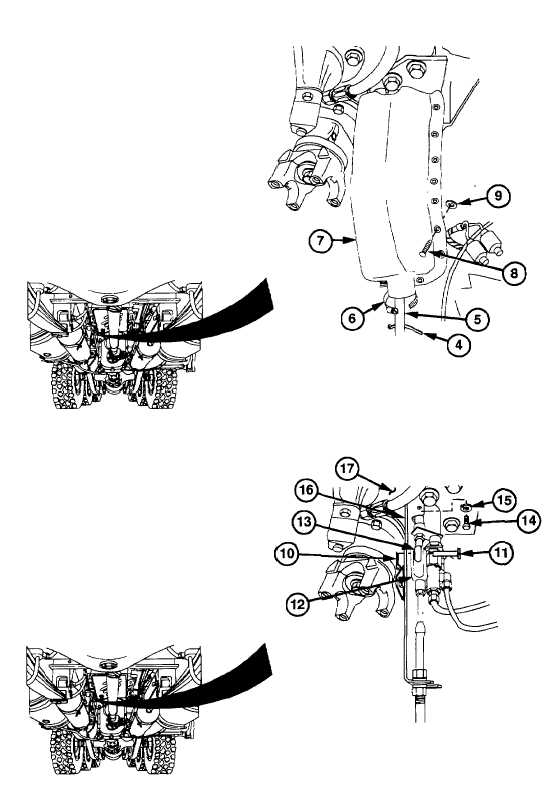

Remove plastic cable ties (4) from cable
(5).
(3)
Remove clamp (6) from rubber boot (7)
under cab.
(4)
Cut seven ratchet fasteners (8) above
washers (9).
(5)
Remove seven washers (9) and fasteners
(8) from boot (7). Discard fasteners.
(6)
Remove boot (7) from cable (5).
(7)
Remove cotter pin (10), pin (11), and yoke
(12) from link (13). Discard cotter pin.
(8)
Remove two screws (14), lockwashers
(15), and bracket (16) from transfer case
(17). Discard lockwashers.
8-6
|
