TM 9-2320-360-34-1
7-9. TRANSMISSION LOCKUP SOLENOID REPLACEMENT (CONT)
WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid injury or death,
keep away from open fire and use in
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately with soap
and water.
CAUTION
Use pipe thread sealing compound
sparingly only on pipe threads. Do
not
apply
compound
to
hose
connections. Damage to equipment
may result.
(11)

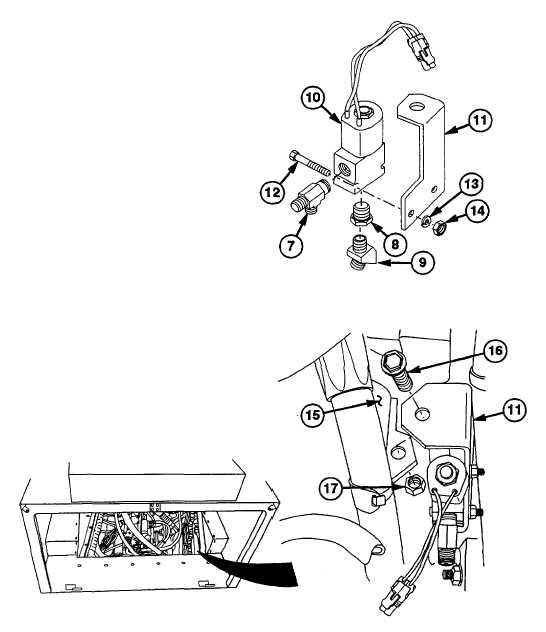

Coat threads of tee (7), adapter (8), and
elbow
(9)
with
pipe
thread
sealing
compound.
(12)
Install tee (7) on lockup solenoid (10).
(13)
Install adapter (8) and elbow (9) on lockup
solenoid (10).
(14)
Install lockup solenoid (10) on bracket (11)
with two screws (12), new lockwashers
(13), and nuts (14).
(15)
Install bracket (11) on transmission (15)
with screw (16) and new locknut (17).
7-32
|
