TM 9-2320-360-34-1
(16)

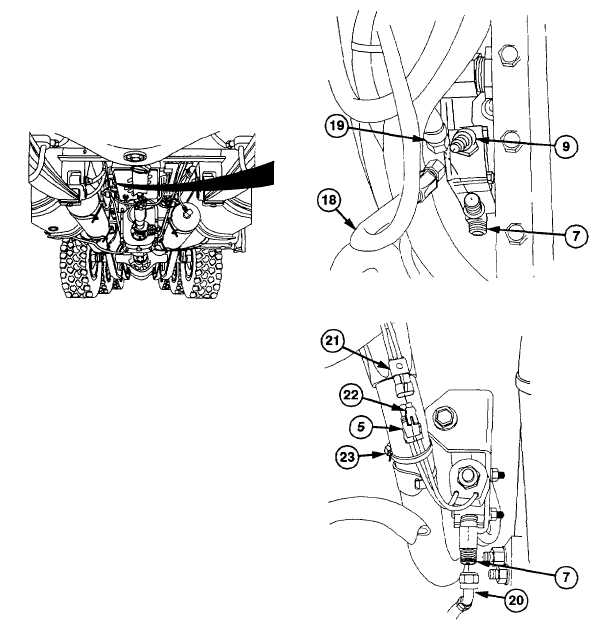

Install hose no. 2646 (18) on elbow (9).
(17)
Install hose no. 2672 (19) on tee (7).
(18)
Install hose no. 2851 (20) on tee (7).
(19)
Install
electrical
connector
(21)
on
electrical connector (5) until locking tab
(22) snaps in place.
NOTE
Plastic
cable
ties
should
be
positioned
in
locations
marked
during removal.
(20)
Secure electrical connector (5) with plastic
cable tie (23).
c.
Follow-On Maintenance
(1)
Remove wheel chocks.
(2)
Start engine (TM 9-2320-360-10).
(3)
Check for leaks.
(4)
Check
transmission
operation
(TM 9-2320-360-10).
(5)
Check engine brake retarder operation
(TM 9-2320-360-10).
(6)
Shut off engine (TM 9-2320-360-10).
(7)
Install
lower
engine
access
panel
(TM 9-2320-360-20).
7-33 (7-34 blank)
|
