TM 9-2320-360-34-1
(11)

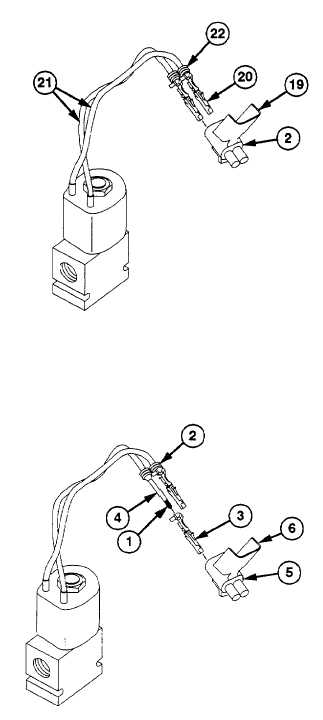

Unlatch and open secondary lock (19) on
connector (2).
WARNING
Tip of removal tool Is very sharp.
Use caution when using tool. Failure
to comply may result In Injury to
personnel.
(12)
Insert
removal
tool
into
cavity
on
connector (2) until seated to release lock
tangs on terminals (20).
(13)
Pull wires (21) back, turn connector (2),
and remove removal tool.
(14)
Cut terminals (20) directly behind wire
seals (22). Discard terminal and seal.
b.
Installation
(1)
Insert 1 in. (2.5 cm) of wire (1) through
new wire seal (2).
CAUTION
Strip wire after placing it through seal
to prevent damage to individual wire
strands.
(2)
Using wire strippers, strip end of wire (1)
leaving 0.25 in. (0.64 cm) of bare wire.
(3)
Insert new terminal (3) in locating hole of
crimp tool using proper hole according to
the gage of wire (1).
(4)
Slide seal (2) down to end of insulation (4)
on wire (1).
NOTE
Wire and seal should be positioned
so larger wings of terminal will crimp
around seal and smaller wings will
crimp around exposed bare wire.
(5)
Position wire (1) on terminal (2).
(6)
Press handles of crimp tool together until
ratchet releases and crimp is complete.
(7)
Push new terminal (3) and wire (1)
through connector (5) until seated.
(8)
Repeat steps (1) thru (7) for other wire.
(9)
Push two wires (1) in connector (5) until
seated.
(10)
Latch secondary lock (6) on connector (5).
7-31
|
