TM 9-2320-360-34-1
7-9. TRANSMISSION LOCKUP SOLENOID REPLACEMENT (CONT)
(5)

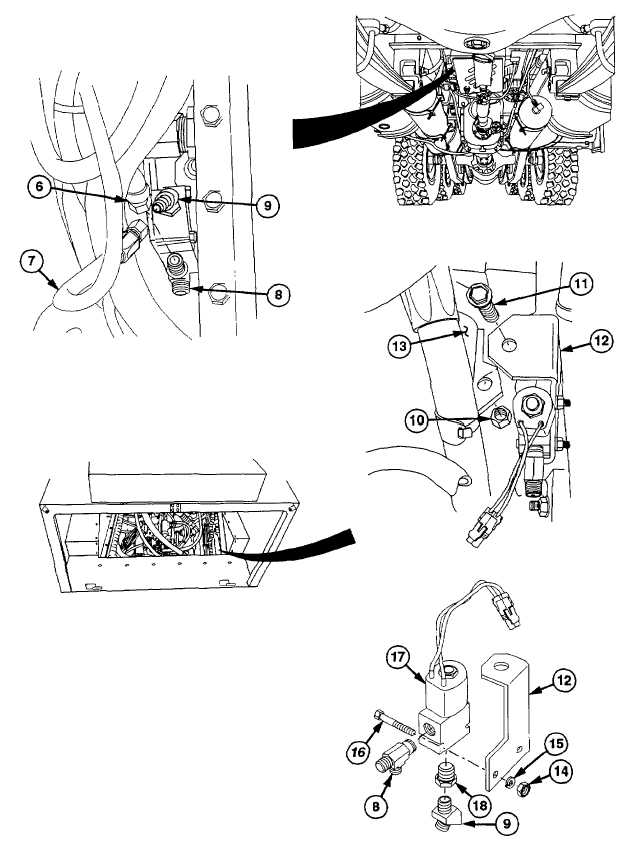

Remove hose no. 2672 (6) from tee (8).
(6)
Remove hose no. 2646 (7) from elbow (9).
(7)
Remove locknut (10), screw (11), and
bracket
(12)
from
transmission
(13).
Discard locknut.
(8)
Remove two nuts (14), lockwashers (15),
screws (16), and lockup solenoid (17)
from bracket (12). Discard lockwashers.
(9)
Remove elbow (9) and adapter (18) from
lockup solenoid (17).
(10)
Remove tee (8) from lockup solenoid (17).
7-30
|
