7-9. TRANSMISSION LOCKUP SOLENOID REPLACEMENT
This task covers:
a. Removal
c.
Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Materials/Parts
Lower engine access panel removed
Compound, Sealing, Pipe Thread (Item 28,
(TM 9-2320-360-20).
Appendix B)
Tie, Cable, Plastic (Item 60, Appendix B)
Tools and Special Tools
Locknut (Item 86, Appendix F)
Tool Kit, Electrical Repair (Item 201,
Lockwashers (2) (Item 126, Appendix F)
Appendix E)
Seals, Cable (2) (Item 346, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Sockets, Contact (2) (Item 325, Appendix F)
Pan, Oil Drain (Item 102, Appendix E)
a.
Removal
NOTE
Location of plastic cable tie should
be marked before removal.

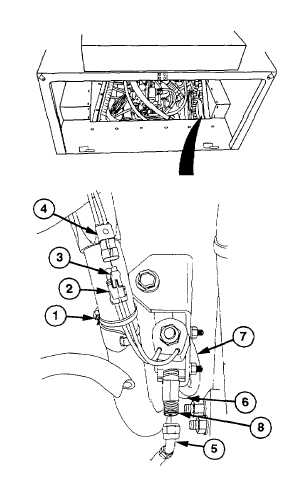

(1)
Remove plastic cable ties (1) securing
electrical connector (2).
NOTE
Connector is removed by gently
prying up on locking tab and pulling
on connector.
(2)
Lift locking tab (3) and remove electrical
connector (2) from electrical connector (4).
(3)
Place drain pan under hoses (5, 6, and 7).
(4)
Remove hose no. 2851 (5) from tee (8).
