7-8. OUTPUT YOKE, DUST SHIELD, AND OIL SEAL REPAIR (CONT)
b.
Assembly
(1)

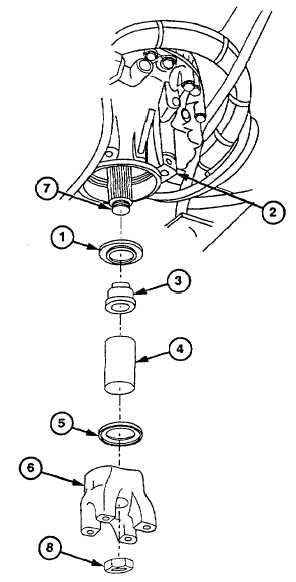

Install new oil seal (1) with seal lip facing
rear cover (2) using oil seal installer (3)
and handle (4).
(2)
Install dust shield (5) in rear cover (2), flat
side first, so rear edge of shield is flush
with surface of rear cover.
(2.1)
Coat inner surface of oil seal (1) with high
temperature grease.
(3)
Install yoke (6) on output shaft (7).
(4)
Coat threads of output shaft (7) and
retainer nut (8) with lubricating oil.
(5)
Install new nut (8) on output shaft (7) with
aid of assistant. Torque to 600-800 lb-ft
(814-1085 Nm).
c.
Follow-On Maintenance
Install transmission to transfer case propeller
shaft (TM 9-2320-360-20).
