TM 9-2320-360-34-1
7-8. OUTPUT YOKE, DUST SHIELD, AND OIL SEAL REPAIR
This task covers:
a. Disassembly
c. Follow-On Maintenance
b. Assembly
INITIAL SETUP
Equipment Conditions
Materials/Parts
Transmission to transfer case propeller
Grease, High Temperature (Item 34.1
shaft removed (TM 9-2320-360-20).
Appendix B)
Oil, Lubricating (Item 44, Appendix B)
Tools and Special Tools
Seal, Oil (Item 315, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Nut (Item 148, Appendix F)
Adapter, Socket Wrench, 3/4 in. Female-
1 in. Male (Item 6, Appendix E)
Personnel Required
Handle, Driver (Item 67, Appendix E)
Two
Holder, Yoke (Figure C-15, Appendix C)
Installer, Oil Seal, Output (Item 81,
Appendix E)
Multiplier, Torque (Item 99, Appendix E)
Socket, 3-1/8 in. (Item 162, Appendix E)
Wrench Set, Socket, 3/4 in. Drive (Item 231,
Appendix E
Wrench, Torque, 0-600 Lb-Ft (Item 233,
Appendix E)
a.
Disassembly
(1)

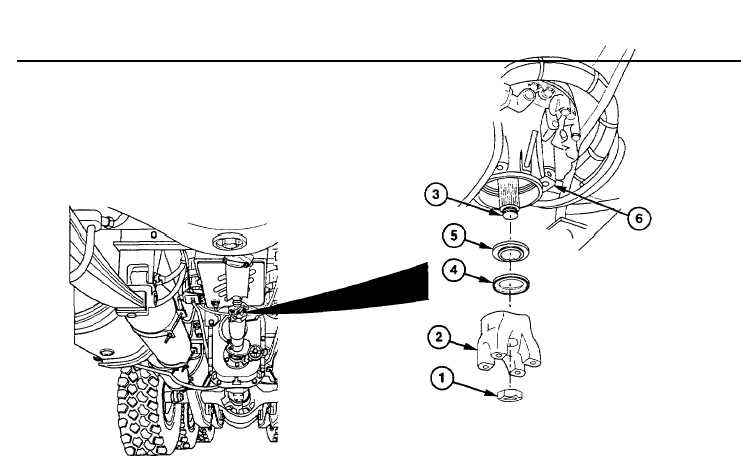

Remove nut (1) and yoke (2) from output
shaft (3) with aid of assistant. Discard nut.
(2)
Remove dust shield (4) and oil seal (5)
from rear cover (6). Discard oil seal.
Change 1 7-27
|
