TM 9-2320-360-34-1
7-7. INTERNAL FILTER ELEMENT REPLACEMENT
This task covers:
a. Removal
c.
Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Materials/Parts
Oil pan and gasket removed (para 7-5).
Oil, Lubricating (Item 44, Appendix B)
Packing, Preformed (Item 191, Appendix F)
Tools and Special Tools
Screw, Self-Locking (Item 285, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Wrench, Torque, 0-300 Lb-in. (Item 235,
Appendix E)
a.
Removal
NOTE
Some transmissions may have a
single spacer.

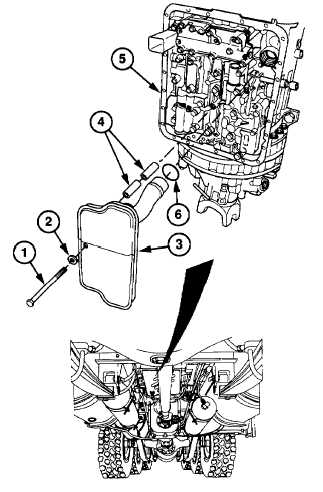

(1)
Remove self-locking screw (1), washer
(2), filter element (3), and two spacers (4)
from transmission (5). Discard self-
locking screw.
(2)
Remove preformed packing (6) from filter
element (3). Discard preformed packing.
b.
Installation
(1)
Coat new preformed packing (6) with
lubricating oil.
(2)
Install new preformed packing (6) on filter
element (3).
CAUTION
Two spacers (PN 23013623) must be
used with filter PN 23013625; a single
spacer (PN 29516469) must be used
with filter PN 29505563.
(3)
Install washer (2) and new self-locking
screw (1) through filter element (3) and
two spacers (4).
(4)
Install filter element (3) on transmission
(5).
(5)
Tighten screw (1) to 120-180 lb-in. (13.6-
20.3 Nm).
c.
Follow-On Maintenance
Install oil pan and gasket (para 7-5).
7-26 Change 3
|
