7-6. GOVERNOR REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Tools and Special Tools
Engine shut off (TM 9-2320-360-10).
Tool Kit, Genl Mech (Item 202, Appendix E)
Parking brake on (TM 9-2320-360-10).
Wrench, Torque, 0-300 Lb-In. (Item 235,
Wheels chocked (TM 9-2320-360-10).
Appendix E)
Materials/Parts
Gasket (Item 20, Appendix F)
a.
Removal.
(1)

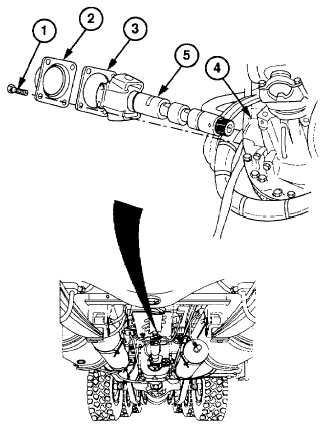

Remove four screws (1), cover (2), and
gasket (3) from transmission (4). Discard
gasket.
(2)
Turn governor (5) clockwise and remove
from transmission (4).
b.
Installation
(1)
Install governor (5) in transmission (4) by
turning governor (5) counterclockwise.
(2)
Align holes in new gasket (3) and cover
(2) with holes in transmission (4).
(3)
Install new gasket (3) and cover (2) on
transmission (4) with four screws (1).
Torque to 120-180 lb-in. (13.6-20.3 Nm).
c.
Follow-On Maintenance
Remove wheel chocks (TM 9-2320-360-20).
