7-5. OIL PAN AND GASKET REPLACEMENT (CONT)
b.
Installation
WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid injury or death,
keep away from open fire and use in
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately with soap
and water.

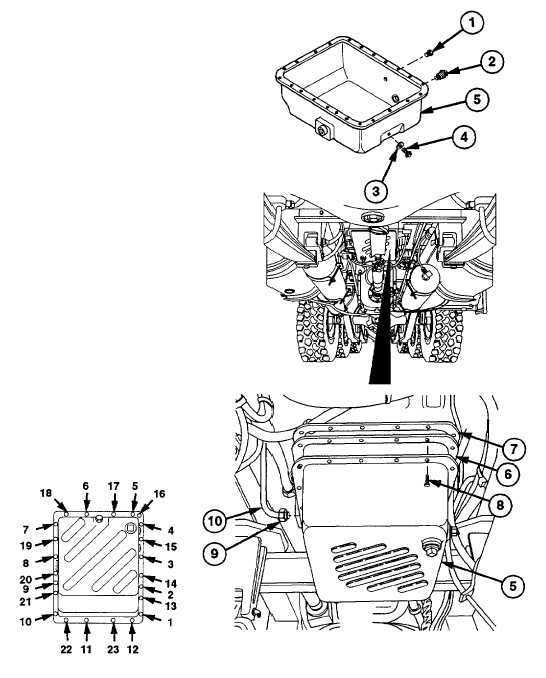

(1)
Coat threads of plugs (1 and 2) with pipe
thread sealing compound.
(2)
Install new gasket (3) and plugs (1, 2, and
4) in oil pan (5).
(3)
Coat lip of oil pan (5) with lubricating oil
and install new gasket (6) on oil pan (5).
NOTE
Oil pan has to be drawn evenly to
transmission.
(4)
Install oil pan (5) on transmission (7) with
23 screws (8). Tighten every other screw
in one direction around oil pan until all 23
screws have been torqued to 120-156 lb-
in. (13.6-17.6 Nm).
(5)
Coat threads of collar (9) with pipe thread
sealing compound.
(6)
Install dipstick tube (10) in oil pan (5) and
tighten collar (9).
c.
Follow-On Maintenance
(1)
Install
transmission
dipstick
(TM 9-2320-360-10).
(2)
Fill
transmission
with
oil
(LO 9-2320-360-12).
(3)
Install transfer case to no. 1 axle propeller
shaft (TM 9-2320-360-20).
