TM 9-2320-360-34-1
7-5. OIL PAN AND GASKET REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Materials/Parts
Transmission oil drained (LO 9-2320-360-12).
Compound, Sealing, Pipe Thread (Item 28,
Transmission dipstick removed
Appendix B)
(TM 9-2320-360-10).
Grease, Automotive and Artillery (Item 32,
Transfer case to no. 1 axle propeller shaft
Appendix B)
removed (TM 9-2320-360-20).
Gasket (Item 17, Appendix F)
Gasket (Item 19, Appendix F)
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
Wrench, Torque, 0-300 Lb-In. (Item 235,
Appendix E)
a.
Removal

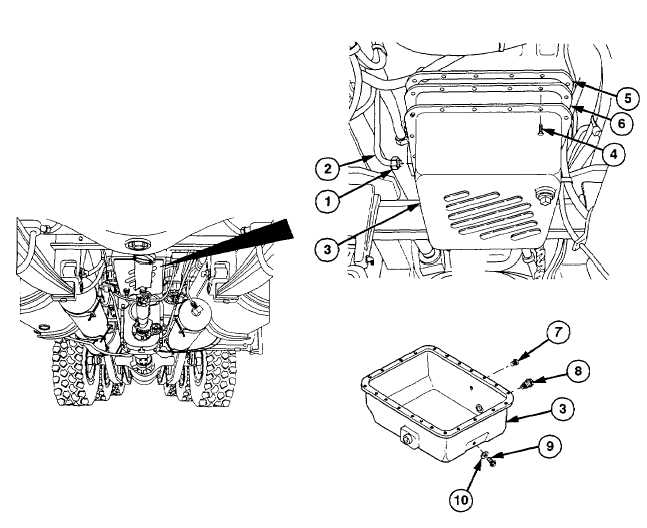

(1)
Loosen collar (1) and remove dipstick tube
(2) from oil pan (3).
NOTE
Support oil pan while removing
screws.
(2)
Remove 23 screws (4) and oil pan (3)
from transmission (5).
(3)
Remove gasket (6) from oil pan (3).
Discard gasket.
(4)
Remove plugs (7, 8, and 9) and gasket
(10) from oil pan (3). Discard gasket.
7-23
|
