TM 9-2320-360-34-1
7-4. TRANSMISSION REPLACEMENT (CONT)
(51)

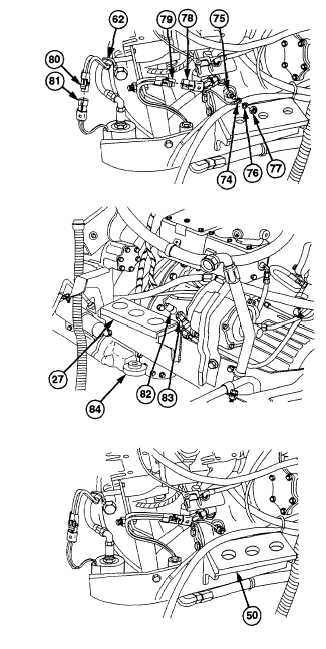

Install wire no. 1068 (74) on transmission
temperature
sensor
(75)
with
new
lockwasher (76) and nut (77).
(52)
Install
electrical
connector
(78)
on
transmission lockup solenoid electrical
connector (79).
(53)
Install wire harness (80) on PTO solenoid
electrical connector (81).
NOTE
Position new plastic cable tie in
location marked during removal.
(54)
Install plastic cable tie (62) on wire
harness (80).
(55)
Install electrical connector (82) on PTO
sensor (83).
NOTE
Biscuits
should
be
secured
to
cradles with masking tape.
(56)
Install six mounting biscuits (84) on two
cradles (27 and 50).
d.
Follow-On Maintenance
Install engine/transmission assembly (para 3-3).
7-22
|
