TM 9-2320-360-34-1
(44)

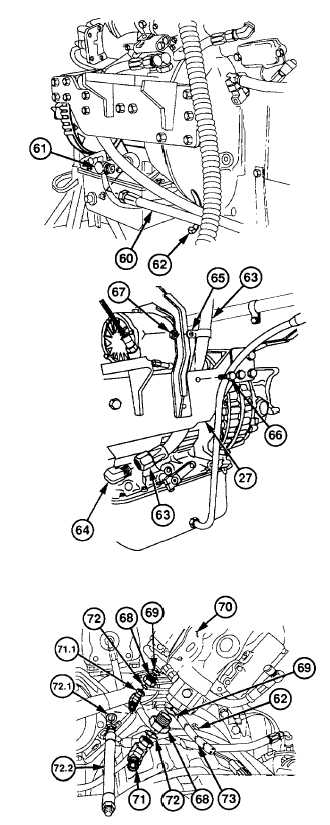

Install hose no. 2393 (60) on elbow (61).
NOTE
Position new plastic cable ties in
locations marked during removal.
(45)
Install plastic cable ties (62) on hose no.
2393 (60).
(46)
Install hose no. 2311 (63) on elbow (64).
(47)
Install clip (65), screw (66), new locknut
(67), and hose no. 2311 (63) on left cradle
(27).
(48)
Install
two
adapters
(68)
and
new
preformed packings (69) on steering pump
(70).
(49)
Install two elbows (71 and 71.1) and new
preformed packings (72) on two adapters
(68).
(49.1)
Install new preformed packing (72.1) and
hose no. 2879 (72.2) on elbow (71.1).
(50)
Install plastic cable tie (62) to secure wires
(73) to hoses.
7-21
|
