TM 9-2320-360-34-1
7-4. TRANSMISSION REPLACEMENT (CONT)
(37)
Install hose no. 2382 (48) on elbow (49).
WARNING
Cradle weighs approximately 30 lb
(13.6 kg). Properly support cradle
during Installation. Failure to comply
may result In injury to personnel.
(38)

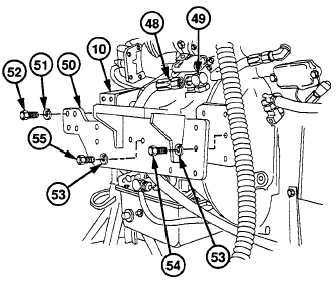

Install right cradle (50) on transmission
(10) with four new lockwashers (51) and
screws (52) with aid of assistant. Do not
tighten.
(39)
Install eight new lockwashers (53), six
screws (54), and two screws (55) on right
cradle (50) and engine/transmission (8
and 10). Do not tighten.
(40)

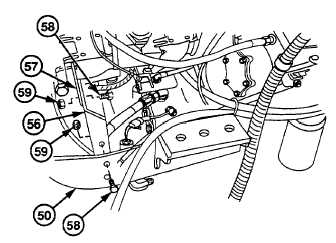

Install steering pump bracket (56) on right
cradle (50) and bracket (57) with four
screws (58) and new locknuts (59).
(41)
Tighten two screws (55) to 123-144 lb-ft
(167-195 Nm).
(42)
Tighten
six
screws
(54)'to
170
lb-ft
(230 Nm).
(43)
Tighten four screws (52) to 213-244 lb-ft
(289-331 Nm).
7-20
|
