TM 9-2320-360-34-1
WARNING
Adhesive-sealant can burn easily,
can give off harmful vapors, and is
harmful to skin and clothing. To
avoid injury or death, keep away from
open fire and use in well ventilated
area. If adhesive sealant gets on skin
or clothing, wash immediately with
soap and water.
(30)
Coat threads of three screws (25) with
adhesive-sealant.

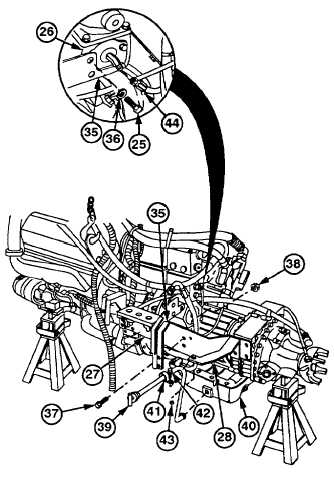

(31)
Install air compressor support bracket (35)
on air compressor (26) with three new
lockwashers
(36)
and
screws
(25).
Torque to 156-180 lb-in. (18-20 Nm).
(32)
Install air compressor support bracket (35)
on left cradle (27) with two screws (37)
and new locknuts (38).
(33)
Install transmission dipstick tube (39) on
transmission oil pan (40).
(34)
Install transmission dipstick tube (39) on
transmission dipstick tube support bracket
(28) with clip (41), screw (42), and new
locknut (43).
(35)
Install oil line no. 2629 (44) on air
compressor (26).
NOTE
Some engines did not have copper
washer. Copper washers can be
installed on all engines to reduce oil
seepage.

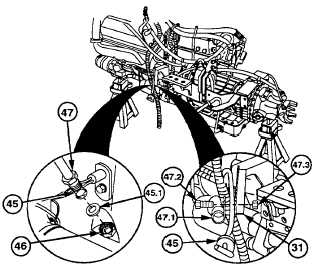

(36)
Install engine dipstick tube (45) and new
copper washer (45.1) on adapter (46).
Tighten collar (47).
(36.1)
Install clip (47.1) on engine dipstick tube
(45) and engine dipstick tube support
bracket (31) with screw (47.2) and new
locknut (47.3).
Change 1 7-19
|
