TM 9-2320-360-34-1
7-4. TRANSMISSION REPLACEMENT (CONT)
CAUTION
Jackstand must be positioned to
clear
transmission
drain
tube.
Failure to comply may result in
damage to drain tube.

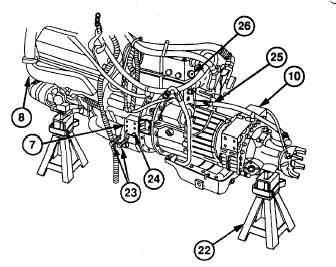

(21)
Place
jackstand
(22)
under
rear
of
transmission (10).
(22)
Lower engine/transmission (8 and 10)
onto jackstands (22).
(23)
Remove four screws (23) from flywheel
housing (7) right and left bottom holes
(24).
(24)
Remove three screws (25)
from
air
compressor (26). Discard lockwashers.
WARNING
Cradle weighs approximately 30 lb
(13.6 kg). Properly support cradle
during installation. Failure to comply
may result in injury to personnel.

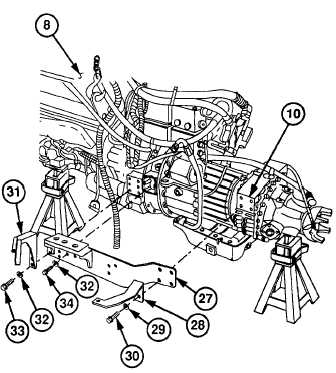

(25)
Install left cradle (27) and transmission
dipstick tube support bracket (28) on
transmission
(10)
with
four
new
lockwashers (29) and screws (30) with aid
of assistant. Do not tighten.
(26)
Install
engine
dipstick
tube
support
bracket (31) and left cradle (27) on
engine/ transmission (8 and 10) with eight
new lockwashers (32), six screws (33),
and two screws (34). Do not tighten.
(27)
Tighten two screws (34) to 123-144 Ib-ft
(167-195 Nm).
(28)
Tighten six screws (33) to 170 Ib-ft
(230 Nm).
(29)
Tighten four screws (30) to 213-244 lb-ft
(289-331 Nm).
7-18
|
