WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid injury or death,
keep away from open fire and use in
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately soap
and water.
(16)

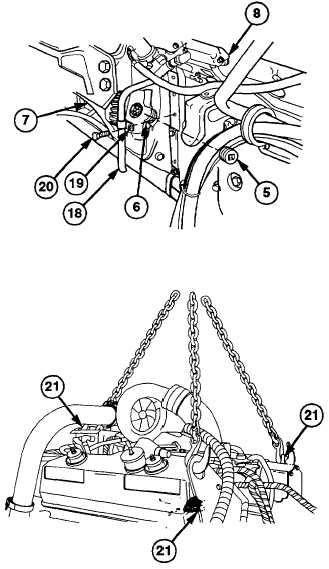

Coat plug (5) with pipe thread sealing
compound.
(17)
Install plug (5) in flywheel access hole (6)
of flywheel housing (7) on lower right side
of engine (8).
(18)
Install air box hose (18) on right side of
engine (8) with clip (19) and screw (20).
NOTE
Chain should be adjusted to the
following lengths: Chain attached to
front lifting bracket 36 in. (91 cm)
Chain attached to left rear lifting
bracket 29.5 in. (75 cm) Chain
attached to right rear lifting bracket
29.5 in.(75 cm)
(19)
Attach suitable lifting device to engine
lifting brackets (21).
WARNING
Engine/transmission
assembly
weighs approximately 4206 lb (1908
kg). Properly support transmission
during Installation. Stay clear of
engine/transmission assembly when
It Is supported by lifting device.
Failure to comply may result In
serious Injury to personnel.
(20)

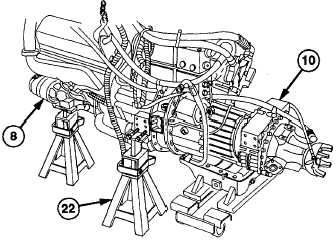

Raise engine/transmission (8 and 10) with
suitable lifting device and remove two
jackstands (22) from rear of engine (8).
