TM 9-2320-360-34-1
7-4. TRANSMISSION REPLACEMENT (CONT)
WARNING
Adhesive-sealant can burn easily,
can give off harmful vapors, and is
harmful to skin and clothing. To
avoid injury or death, keep away from
open fire and use in well ventilated
area. If adhesive sealant gets on skin
or clothing, wash immediately with
soap and water.
(9)
Coat threads of 24 transmission mounting
screws (14) with adhesive-sealant.
(10)

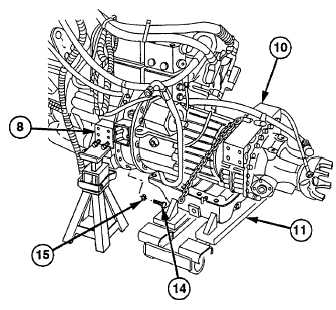

Install 24 new lockwashers (15) and
transmission mounting screws (14) on
transmission (10) and engine (8). Torque
to 50-60 lb-ft (68-81 Nm).
(11)
Remove
transmission
lift
(11)
from
transmission (10).
(12)

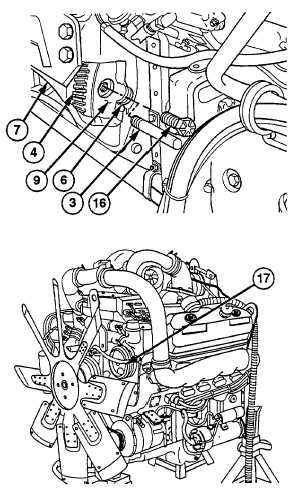

Remove guide screw (3) from flywheel (4)
thru flywheel access hole (6) in flywheel
housing (7).
(13)
Coat threads of 12 flexplate mounting
screws (16) with adhesive-sealant.
CAUTION
Camshaft pulley must only be turned
clockwise. Turning counterclockwise
may result in loosening camshaft
pulley.
NOTE
Do not tighten flexplate screws until
all 12 screws are installed.
(14)
Install 12 flexplate mounting screws (16)
in flywheel (4) and flexplate (9) through
access hole (6) while assistant turns
camshaft pulley (17) to align holes in
flexplate (9) with access hole (6). Do not
tighten.
(15)
Tighten 12 flexplate mounting screws (16)
to 80-90 lb-ft (108-122 Nm).
7-16
|
