TM 9-2320-360-34-1
(42)
Install two screws (82) into transmission
(22) torque converter housing front upper
holes (83).
(43)
Attach suitable lifting device to two screws
(82) and rear of replacement transmission
(22).
(44)
Remove
transmission
(22)
from
transmission lift (53) and place on clean,
flat surface.
(45)

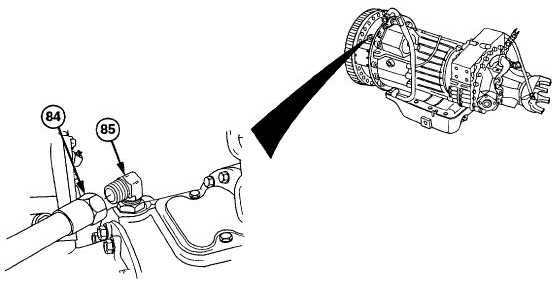

Remove hose no. 2310 (84) from elbow
(85).
b.
Transmission Preparation
NOTE
Refer to para 7-3 for procedure to
unpack transmission.
(1)
Remove replacement transmission (1)
from shipping crate and place on dean,
flat surface.
(2)
Remove lifting device from replacement
transmission (1).
7-13
|
