TM 9-2320-360-34-1
7-4. TRANSMISSION REPLACEMENT (CONT)

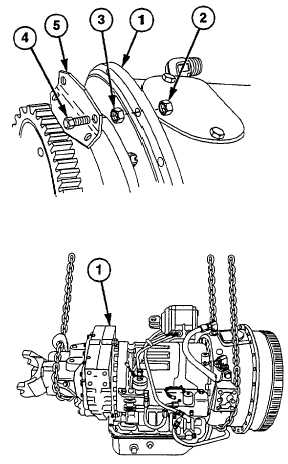

(3)
Remove six nuts (2), spacer nuts (3),
screws (4), and three flywheel support
shipping brackets (5) from replacement
transmission (1).
(4)
Install three flywheel support shipping
brackets (5) to transmission (1) with six
screws (4), spacer nuts (3), and nuts (2).
NOTE
Refer to para 7-3 for procedure to pack
transmission.
(5)
Attach
suitable
lifting
device
to
transmission (1) and install in shipping
crate.
c.
Installation

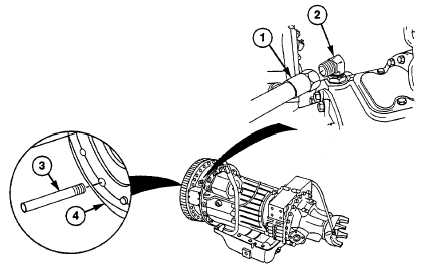

(1)
Install hose no. 2310 (1) on elbow (2).
(2)
Install guide screw (3) in flywheel (4).
7-14
|
