TM 9-2320-360-34-1
7-4. TRANSMISSION REPLACEMENT (CONT)
NOTE
Location of plastic cable ties should
be marked before removal.
(36)

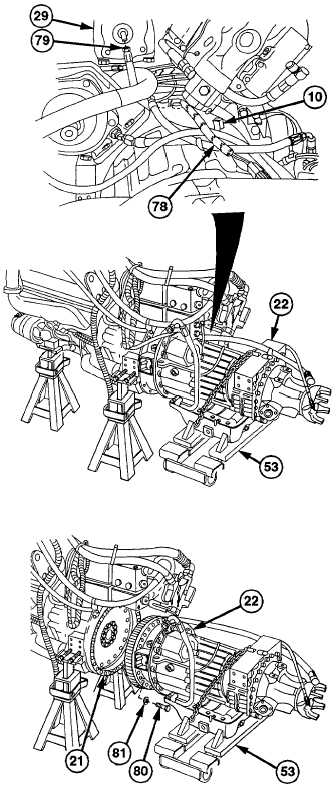

Remove cable ties (10) securing wires
(78) to hoses.
(37)
Remove oil line no. 2629 (79) from air
compressor (29).
NOTE
Do not lift engine/transmission off
support stands.
(38)
Raise transmission lift (53) to support
transmission (22) during removal.
(39)
Secure transmission (22) to transmission
lift (53).
WARNING
Transmission weighs approximately
1125
lb
(510
kg).
Support
transmission during removal. Failure
to comply may result in serious injury
to personnel.
(40)
Remove 24 screws (80) and lockwashers
(81) from transmission (22) and engine
(21). Discard lockwashers.
(41)
Remove transmission (22) from engine
(21) with aid of assistant.
7-12
|
