TM 9-2320-360-34-1
(29.1)

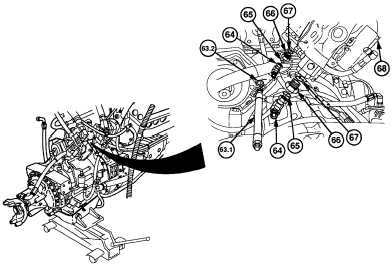

Remove
hose
no.
2879
(63.1)
and
preformed packing (63.2) from elbow (64).
Discard preformed packing.
(30)
Remove two elbows (64) and preformed
packings (65) from two adapters (66).
Discard preformed packings.
(31)
Remove two adapters (66) and preformed
packings (67) from steering pump (68).
Discard preformed packings.
(32)

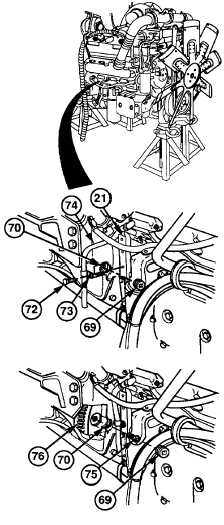

Remove plug (69) from flywheel access
hole (70) on lower right side of engine
flywheel housing (71).
(33)
Remove screw (72), dip (73), and air box
hose (74) from right side of engine (21).
CAUTION
Camshaft pulley must only be turned
clockwise. Turning counterclockwise
may result in loosening camshaft
pulley.
(34)
Remove 12 screws (75) from flexplate
(76) through flywheel access hole (70)
while assistant turns camshaft pulley (77)
to line up screws (75) with access hole
(70).
(35)
Install plug (69) in flywheel access hole
(70).
7-11
|
