TM 9-2320-360-34-1
7-4. TRANSMISSION REPLACEMENT (CONT)
(23)

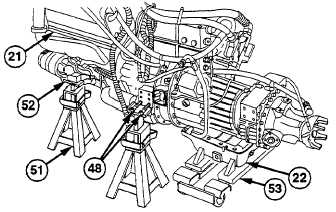

Lower engine/transmission (21 and 22)
and support engine with four jackstands
(51) at engine flywheel housing screws
(48) and engine front mount (52).
(24)
Position
transmission
lift
(53)
under
transmission (22).
(25)

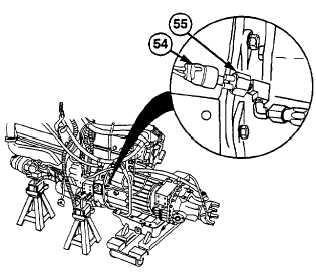

Remove electrical connector (54) from
PTO sensor (55).
NOTE
Location of plastic cable tie should
be marked before removal.
(26)

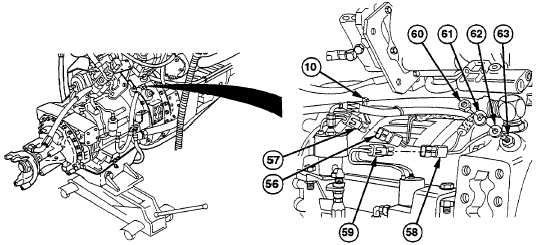

Remove cable tie (10) from wire harness
(56).
(27)
Remove wire harness (56) from PTO
solenoid electrical connector (57).
(28)
Remove electrical connector (58) from
transmission lockup solenoid electrical
connector (59).
(29)
Remove nut (60), lockwasher (61), and
wire no. 1068 (62) from transmission
temperature
sensor
(63).
Discard
lockwasher.
7-10
|
