TM 9-2320-360-34-1
7-4. TRANSMISSION REPLACEMENT (CONT)
(9)

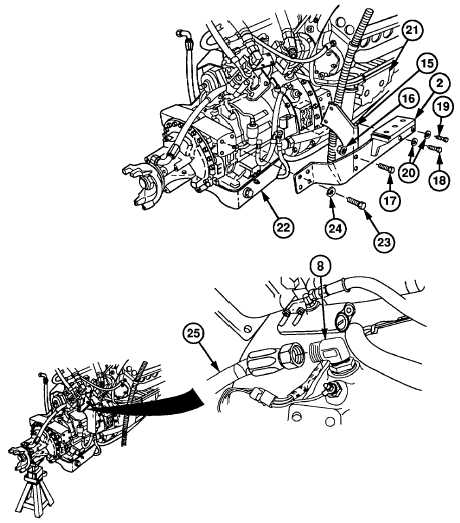

Remove two locknuts (16), screws (17),
and steering pump bracket (15) from right
cradle (2). Discard locknuts.
(10)
Remove two screws (18), six screws (19),
and eight lockwashers (20) from right
cradle (2) and engine/transmission (21
and 22). Discard lockwashers.
WARNING
Cradle weighs approximately 30 lb
(13.6 kg). Properly support cradle
during removal. Failure to comply
may result in injury to personnel.
(11)
Remove four screws (23), lockwashers
(24),
and
right
cradle
(2)
from
transmission (22) with aid of assistant.
Discard lockwashers.
(12)
Remove hose no. 2382 (25) from elbow
(8).
(13)
Remove
three
screws
(26)
and
lockwashers (27) from support bracket
(28) and air compressor (29). Discard
lockwashers.
(14)
Remove two locknuts (30), screws (31),
and support bracket (28) from left cradle
(2).
(15)
Remove locknut (32), screw (33), and clip
(34) from transmission dipstick tube (35)
and support bracket (36). Discard locknut.
(16)
Remove
dipstick
tube
(35)
from
transmission oil pan (37).
7-8
|
