TM 9-2320-360-34-1
(2)

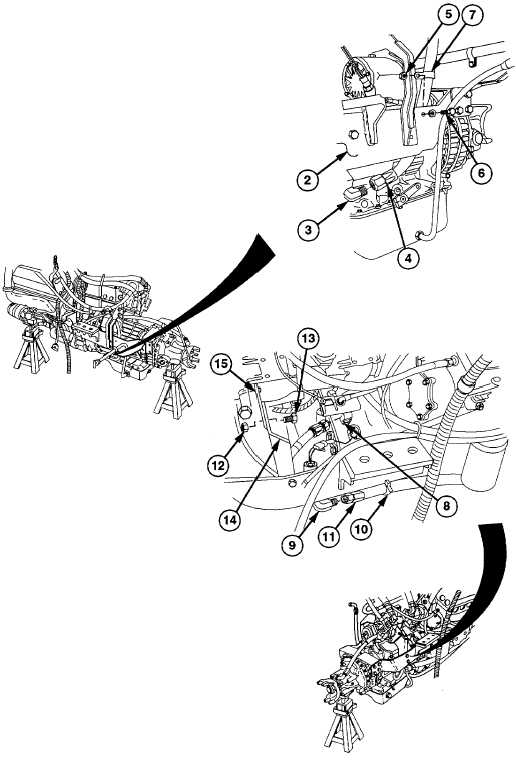

Place drain pan below elbow (3) to catch
draining fluid.
CAUTION
Plug removed lines and cap fittings
to
prevent
contaminants
from
entering systems. Failure to comply
may result in systems failure.
NOTE
Tag and mark hoses before removal.
(3)
Remove hose no. 2311 (4) from elbow (3).
(4)
Remove locknut (5), screw (6), clip (7),
and hose no. 2311 (4) from left cradle (2).
Discard locknut.
(5)
Place drain pan below two elbows (8 and
9) to catch draining fluid.
NOTE
Location of plastic cable ties should
be marked before removal.
(6)
Remove cable ties (10) from hose no.
2393 (11).
(7)
Remove hose no. 2393 (11) from elbow
(9).
CAUTION
Do not remove the two screws that
secure the bracket to steering pump.
Failure to comply may result in
damage to equipment.
(8)
Remove two locknuts (12) and screws
(13) from two steering pump brackets (14
and 15). Discard locknuts.
7-7
|
