7-4. TRANSMISSION REPLACEMENT
This task covers:
a. Removal
c. Installation
b. Transmission Preparation
d. Follow-On Maintenance
Initial Setup:
Equipment Conditions
Tools and Special Tools (Cont)
Engine/Transmission assembly
Wrench, Torque, 0-300 Lb-In. (Item 235,
removed (para 3-3).
Appendix E)
Transmission oil drained
Wrench, Torque, 0-600 Lb-Ft (Item 233,
(LO 9-2320-360-12).
Appendix E)
Tools and Special Tools
Materials/Parts
Tool Kit, Genl Mech (Item 202, Appendix E)
Adhesive-Sealant (Item 6, Appendix B)
Adapter, Socket Wrench, 1/2 In. Female - 3/8 In.
Compound, Sealing, Pipe Thread (Item 28,
Male (Item 5, Appendix E)
Appendix B)
Jackstands (4) (Item 93, Appendix E)
Tags, Identification (Item 56, Appendix B
Lift, Transmission and Differential (Item 95,
Tape, Masking (Item 58, Appendix B)
Appendix E)
Ties, Cable, Plastic (Item 60, Appendix B)
Pan, Oil Drain (Item 102, Appendix E)
Locknuts (4) (Item 86, Appendix F)
Screws (4) (Item 150, Appendix E)
Locknuts (2) (Item 81, Appendix F)
Sling Assemblies (2) (Item 160, Appendix E)
Lockwashers (24) (Item 107, Appendix F)
Wrench, Combination, 1-1/2 In. (Item 214,
Lockwashers (16) (Item 106, Appendix F)
Appendix E)
Lockwashers (8) (Item 124, Appendix F)
Wrench, Crow's Foot, 3/4 In. (Item 219,
Lockwashers (3) (Item 119, Appendix F)
Appendix E)
Lockwasher (Item 117, Appendix F)
Wrench Set, Socket, 3/4 In. Drive (Item 231,
Packings, Preformed (2) (Item 181, Appendix F)
Appendix E
Packings, Preformed (2) (Item 186, Appendix F)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Packing, Preformed (Item 158, Appendix F)
Appendix E)
Washer, Copper (Item 333.1, Appendix F)
Screw, Guide (Figure C-4, Appendix C)
Personnel Required
Two
a.
Removal
(1)

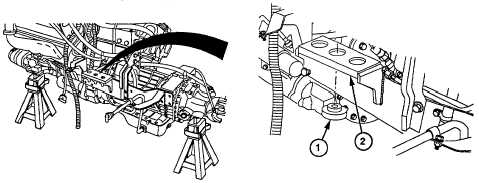

Remove six mounting biscuits (1) from two
cradles (2).
